Debugging Guide

The platform ships two complementary debugging tools — they share the same diagnostic logic and the same AI-fix prompt dictionary. Different scenarios call for different tools, but neither requires the developer to open DevTools or add any new dependency:

Tool	When to use	Entry point
Integration Diagnostic Tool (remote, standalone web app)	Audit any deployed generator without source-code access; integration acceptance review; investigate user-reported issues remotely	`https://www.atomm.com/craftlab/generator/generator-debugger/`
`?debug=true` debug panel (in-page, built into workbench)	Develop and debug your own generator with live event stream and publish-payload inspection during canvas interactions	Append `?debug=true` to your generator URL

The sections below cover the Integration Diagnostic Tool first, then the ?debug=true panel.

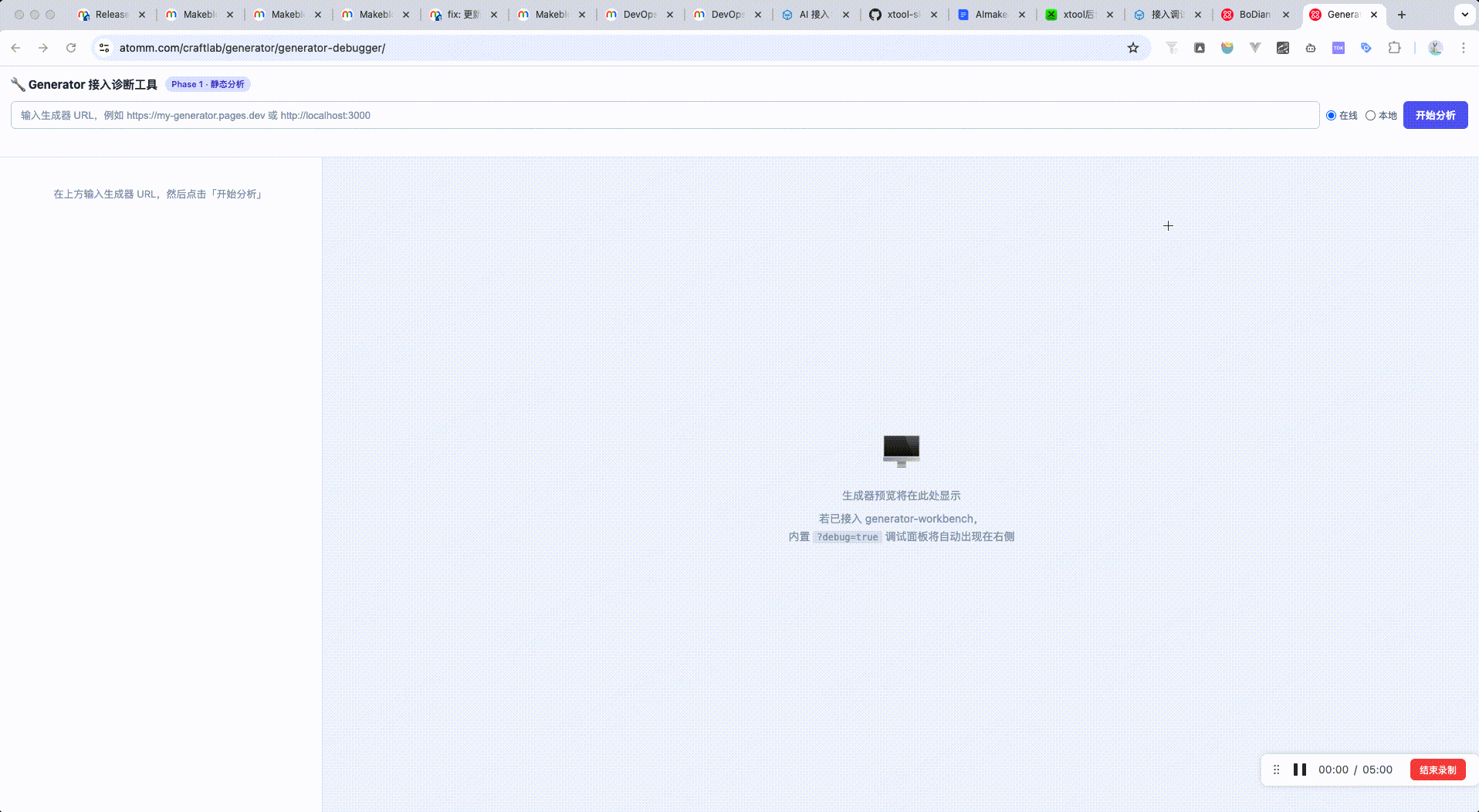

Integration Diagnostic Tool

The Integration Diagnostic Tool is a standalone web app that does not require any change to the generator project and does not require opening DevTools. Just paste a generator URL and you get a full report containing an integration completeness score, per-check results, and one-click AI fix prompts.

How to use it

Online mode (default)

Open https://www.atomm.com/craftlab/generator/generator-debugger/
Paste the target generator URL into the input field (full URLs, localhost, and bare hostnames are accepted — https:// is auto-prefixed)
Click Start Analysis or press Enter
The left panel cycles through these states:
- "⏳ Analyzing..." (~1 second)
- "🔍 HTML analysis complete — waiting for runtime verification..." (up to 15 seconds)
- "✅ Analysis complete — N errors, M warnings"
The right-side iframe loads the target generator at the same time (with ?debug=true automatically appended). If the generator is integrated correctly, its built-in debug panel will also appear in the bottom-right of the iframe.

Local mode + Bookmarklet

Switch to the Local radio at the top of the tool page
In the local-mode info card on the left, drag the 🔧 Atomm Diagnostic Tool link into your browser bookmark bar
Open your local generator page and click the Atomm Diagnostic Tool bookmark
A new tab opens back at the diagnostic page with the runtime checks already rendered

Quick link

The tool supports a ?url= query parameter that triggers analysis automatically:

https://www.atomm.com/craftlab/generator/generator-debugger/?url=https://my-generator.pages.dev

Useful for sharing in Lark / Slack — recipients click and immediately see the results.

Built-in Generator Debug Panel

Append ?debug=true to your generator page URL:

https://your-generator.pages.dev/?debug=true

About one second after the page mounts, a draggable debug panel (#__gw_integration_checker__) appears in the bottom-right corner.

When to use this

After integrating generator-workbench, if something is not working (avatar click unresponsive, Publish as Template dialog does not open, export does nothing, etc.), add ?debug=true first. The panel will tell you exactly what is misconfigured and how to fix it.

Debug only

Remove ?debug=true before going to production. The panel is lazily loaded — on a normal visit no debug code is downloaded, executed, or bundled.

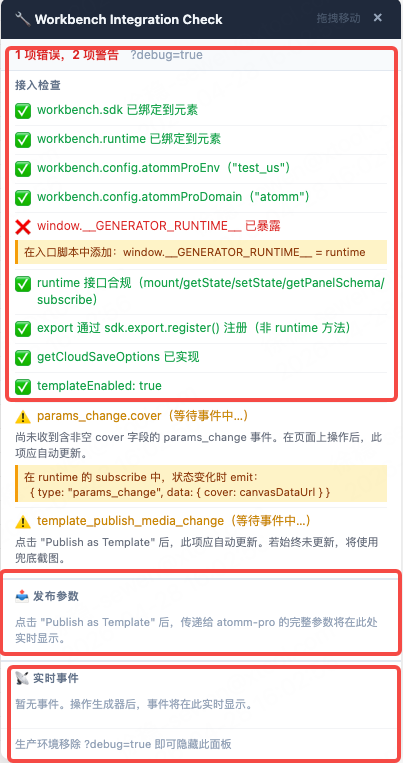

Panel Layout

The panel has three sections:

┌─────────────────────────────────────────────────┐
│ 🔧 Workbench Integration Check            [×]  │  ← header (draggable)
├─────────────────────────────────────────────────┤
│  2 errors, 5 warnings              ?debug=true  │  ← summary bar
├─────────────────────────────────────────────────┤
│  INTEGRATION CHECKS                             │  ← ① Static + env/lang/analytics
│  ✅ workbench.sdk bound to element              │
│  ❌ atommProEnv not configured                  │
│     → Fix: set atommProEnv in workbench.config  │
│     📋 Copy AI Fix Prompt                       │
│  ⚠️  SDK env mismatch with atommProEnv          │
│  ⚠️  atommProLocale not set (browser: en-US)    │
│  ⚠️  analytics.reporter not configured          │
├─────────────────────────────────────────────────┤
│  🔗 CDN ASSETS                                  │  ← ② CDN Check (new)
│  ✅ generator-sdk: index.umd.js                 │
│  ✅ generator-workbench: index.umd.js           │
│  ⚠️  atomm-ui JS: not detected (lazy-loaded)    │
│     📋 Copy AI Fix Prompt                       │
├─────────────────────────────────────────────────┤
│  📤 PUBLISH PARAMS              14:23:07.334    │  ← ③ Publish Params
│  ✅ generatorImage  ✅ appKey  ❌ template       │
│                    📋 Copy AI Fix Prompt        │
│  { "generatorTag": "...", "initialData": {...} } │
│                                       [copy]    │
├─────────────────────────────────────────────────┤
│  📊 ANALYTICS                          (2)      │  ← ④ Analytics (new)
│  ✅ analytics.reporter.reportExport configured  │
│  14:23:08  [reporter] reportExport  action:...  │
│  14:23:05  [gtag]     click_export  {...}       │
├─────────────────────────────────────────────────┤
│  📡 LIVE EVENTS                        (3)      │  ← ⑤ Live Events
│  14:23:07.334  ● params_change  cover: ...      │
│  14:22:59.100  ● state-change   keys: x,y       │
└─────────────────────────────────────────────────┘

① Integration Checks

Runs immediately on page load. Verifies all required integration config is in place.

Icon	Meaning
✅	Check passed
❌	Error — blocks functionality
⚠️	Warning — feature degraded but not crashed
⏭️	Skipped (prerequisite not met)

Full check list:

Check	Corresponding failure
`workbench.sdk` bound to element	Avatar click unresponsive
`workbench.runtime` bound to element	All runtime features broken
`atommProEnv` configured	Avatar click unresponsive
`atommProDomain` configured	Avatar click unresponsive
`window.__GENERATOR_RUNTIME__` exposed	Debug tooling broken
runtime interface compliant (mount/getState/setState/getPanelSchema/subscribe)	Multiple failures
export registered via `sdk.export.register()`	Export button does nothing
SDK env matches atommProEnv	Auth / API environment mismatch
atommProLocale configured	Dialog language may not match target users
analytics.reporter configured	Export/publish actions not tracked
`getCloudSaveOptions` implemented (cloud profile)	Cloud save title is undefined
`templateEnabled: true` (template profile)	Publish as Template button missing
`params_change.cover` (template profile)	Publish as Template dialog won't open
`template_publish_media_change` (template profile)	Template preview image missing

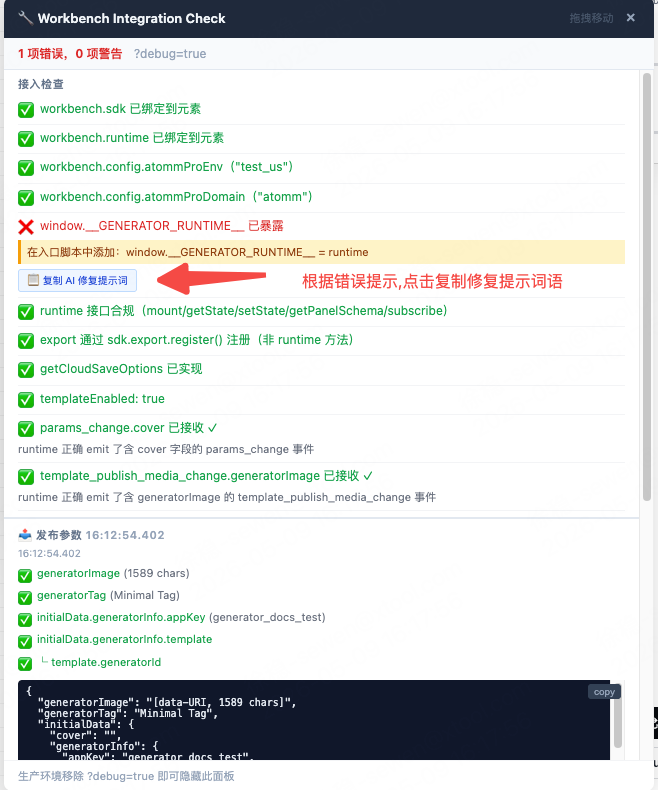

Every ❌ / ⚠️ item shows two helpers below it:

Yellow fix suggestion — a short code snippet to copy directly into your code
「📋 Copy AI Fix Prompt」button — click to copy a comprehensive repair context to the clipboard, then paste it into any AI tool (Claude, Cursor, ChatGPT, etc.) to get an automatic diagnosis and fix for that specific check

② CDN Assets

The panel scans document.scripts and all link[rel="stylesheet"] elements at load time and checks whether the official CDN assets are present.

Assets checked:

Asset	Official CDN URL
generator-sdk (ES)	`.../generator-sdk/index.es.js`
generator-sdk (UMD)	`.../generator-sdk/index.umd.js`
generator-workbench	`.../generator-sdk/generator-workbench/index.umd.js`
atomm-ui JS	`.../atomm-ui/dist-browser/atomm-ui.js`
atomm-ui CSS	`.../atomm-ui/dist-browser/atomm-ui.min.css`
atomm-pro JS	`.../atomm-pro/dist-browser/atomm-pro.js`
atomm-pro CSS	`.../atomm-pro/dist-browser/atomm-pro.css`

Lazy-loading

atomm-ui and atomm-pro are lazy-loaded by the workbench on demand — atomm-ui when the workbench initialises, atomm-pro when the user opens the Publish as Template dialog. Seeing ⚠️ for these at panel startup is expected; they will flip to ✅ after the corresponding interaction.

If atommUiScriptUrl, atommProScriptUrl, or similar config overrides are set, the panel checks those custom URLs as well and labels them (custom).

Every ⚠️ entry has a「📋 Copy AI Fix Prompt」button for targeted troubleshooting.

③ Publish Params

Trigger: Every time "Publish as Template" is clicked, the panel captures the full payload that workbench sends to atomm-pro and displays it.

Quick-glance fields:

Field	Icon meaning
`generatorImage`	✅ preview image present / ❌ empty (publish preview will be blank)
`generatorTag`	✅ template name present / ❌ empty (template published without a name)
`appKey`	✅ resolved / ❌ empty
`template`	✅ template data present / ❌ missing (template data will not be saved)
`template.generatorId`	✅ present / ❌ missing

JSON view: The full payload is displayed as formatted JSON. Base64 image data is automatically truncated to [data-URI, 12453 chars] to keep the panel readable.

Copy button: Click copy in the top-right of the JSON block to copy the full raw payload (including complete base64 data) to the clipboard for comparison or further analysis.

「📋 Copy AI Fix Prompt」button: When a field displays ❌ (e.g. generatorImage, generatorTag, appKey, template), a「📋 Copy AI Fix Prompt」button appears next to it. Click it to copy a complete repair context for that missing field and paste it into any AI tool to get an actionable fix.

④ Analytics

A dedicated monitoring section for tracking events. The panel intercepts calls from three sources and logs them in real time:

Source	Badge	Description
`analytics.reporter`	`[reporter]`	Custom reporter configured in `workbench.config.analytics.reporter`
`window.gtag`	`[gtag]`	Google Analytics 4 events
`window.sensors`	`[sa]`	Sensor Analytics (神策) events

First-line status:

✅ analytics.reporter.reportExport configured — events will be captured
⚠️ analytics.reporter not configured — export/publish actions are not tracked

Event log format:

14:23:08  [reporter]  reportExport  {"action":"download"}

Actions that trigger analytics events:

Click Export button → reportExport
Click Publish as Template → reportPublishTemplateClick (if implemented)
Any gtag('event', ...) or sensors.track(...) calls on the page

Not using analytics?

Ignore the ⚠️ if data tracking is not required. Click「📋 Copy AI Fix Prompt」on the warning to get full setup code for configuring a reporter.

⑤ Live Events

The panel subscribes to runtime.subscribe() and displays key events in real time. The log shows newest events at the top, up to 30 entries.

Color	Meaning
Green `●`	Event OK (e.g. `params_change` carried a `cover` field)
Red `●`	Event problem (e.g. `params_change` had an empty `cover`)

Monitored events:

Event	Displayed info
`params_change`	cover field length, or "cover field empty or missing"
`template_publish_media_change`	whether generatorImage was provided
`select_template`	selected template name
`state-change`	up to 3 changed field names
`ready`	runtime ready signal

Live check updates: When params_change arrives with a cover field, the corresponding check in the Static Checks section automatically upgrades from ⚠️ to ✅ — no page refresh needed.

Copy AI Fix Prompt

This is the debug panel's core feature for AI-assisted development. Whenever a ❌ / ⚠️ check item or a missing publish param field appears, the panel renders a「📋 Copy AI Fix Prompt」button next to it.

How to use

Open the ?debug=true panel and locate any ❌ or ⚠️ item
Click the「📋 Copy AI Fix Prompt」button next to it
Switch to your AI chat (Claude, Cursor Chat, ChatGPT, etc.)
Paste the prompt and send
The AI will diagnose the root cause and return ready-to-use fix code

Supported checks

Integration checks (14 items):

Check	Triggers when
`workbench.sdk` not bound	`workbench.sdk` assignment missing or wrong order
`workbench.runtime` not bound	`workbench.runtime` assignment missing or wrong order
`atommProEnv` not configured	`config.atommProEnv` field absent
`atommProDomain` not configured	`config.atommProDomain` field absent
`__GENERATOR_RUNTIME__` not exposed	runtime not mounted on `window`
runtime interface non-compliant	`mount` / `getState` / `setState` / `getPanelSchema` / `subscribe` missing
export not registered	`sdk.export.register()` not called
SDK env ≠ atommProEnv	`GeneratorSDK.init({ env })` value does not match `config.atommProEnv`
atommProLocale not configured	`config.atommProLocale` absent
analytics.reporter not configured	`config.analytics.reporter` not implemented
`getCloudSaveOptions` not implemented	cloud save config absent
`templateEnabled` not set	`config.templateEnabled` is `false` or absent
`params_change.cover` missing	runtime not sending `cover` in `params_change` event
`template_publish_media_change` missing	runtime not emitting this event

CDN asset checks (6 items):

Check	Triggers when
`atomm-ui JS` not detected	Normal before first interaction (lazy-loaded); investigate if still absent after
`atomm-ui CSS` not detected	Same as above
`atomm-pro JS` not detected	Normal before opening Publish as Template (lazy-loaded)
`atomm-pro CSS` not detected	Same as above
`generator-sdk` not detected	CDN not loaded, or using npm package (normal)
`generator-workbench` not detected	CDN not loaded, or using npm package (normal)

Publish param fields (5 items):

Field	Triggers when
`generatorImage`	Publish preview image is empty
`generatorTag`	Template name is empty
`appKey`	appKey not resolved
`template`	Template data is missing
`template.generatorId`	generatorId is missing

View all prompt texts offline

To read the full text of all fix prompts offline, see the Integration Checklist → Debug Panel Quick Fix Prompts reference page.

Dragging the Panel

The panel starts fixed in the bottom-right corner. If it covers something you need to interact with, drag it by its title bar to any position:

Cursor shows grab when hovering over the title bar
Cursor shows grabbing while dragging
The panel stays within the viewport bounds
Position is preserved across panel refreshes caused by incoming events

Deactivating the Panel

Remove ?debug=true from the URL:

https://your-generator.pages.dev/  ✅ normal visit, panel not loaded

The debug code is dynamically imported — on a normal visit nothing is downloaded, executed, or bundled.

Workbench Runtime Communication — full event protocol reference
Generator Workbench — integration config overview
Runtime Contract — runtime interface spec
